Short Circuit Protection

Over Current Protection

4850-2

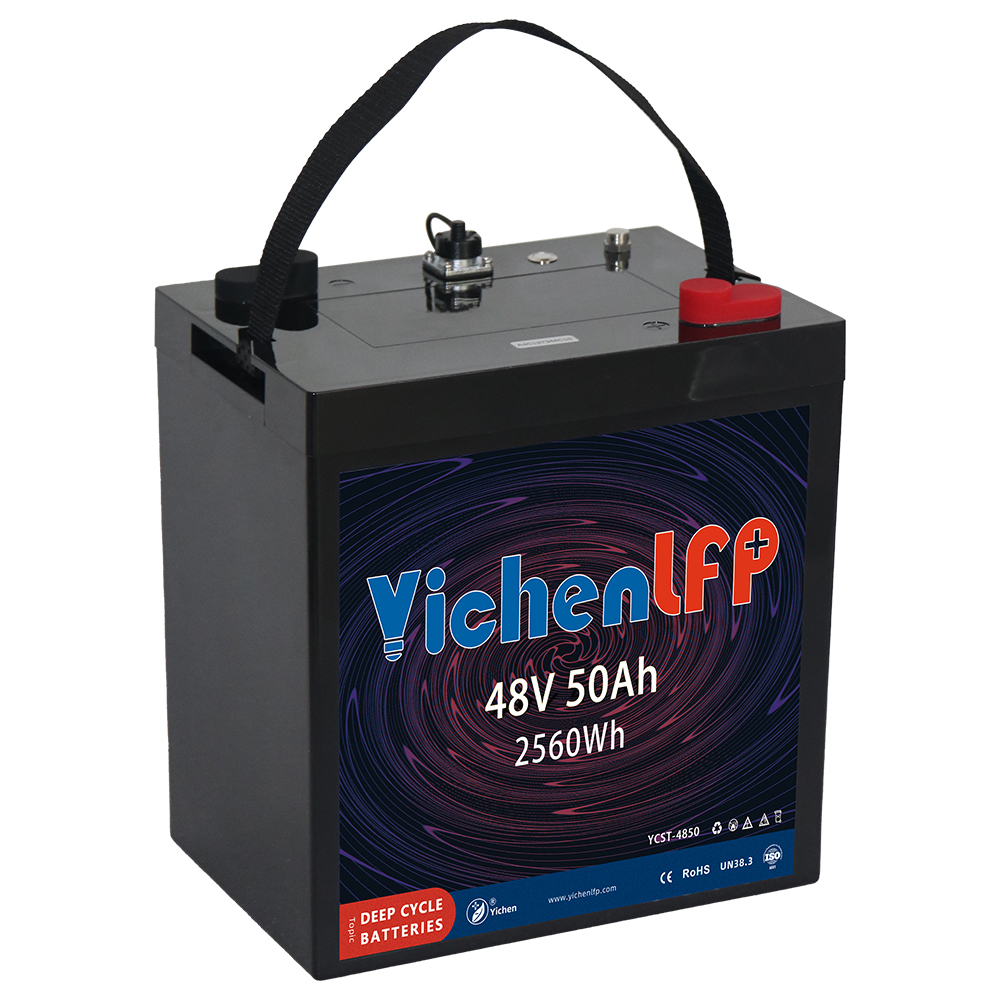

4850-3

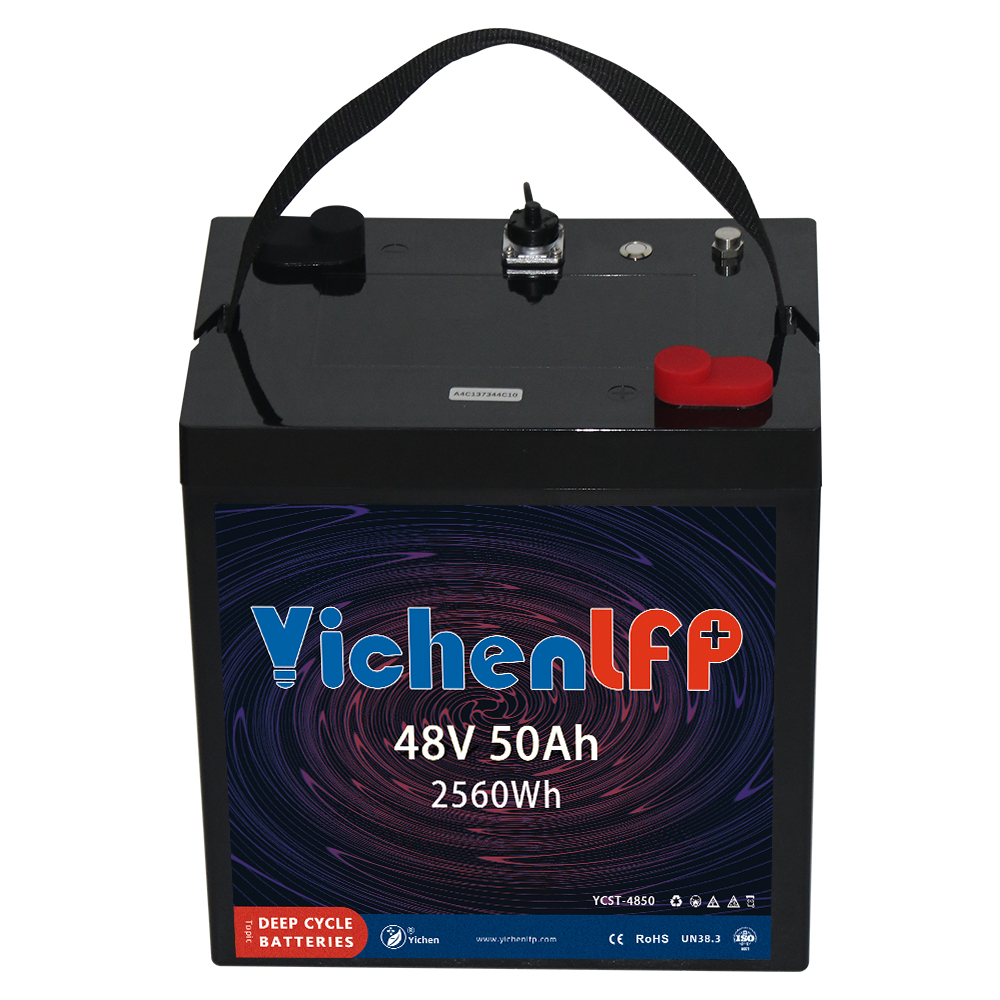

4850-1

Over Charge Protection

Over Discharge Protection

Technical Specifications

Specification

Nominal Voltage

51.2V

Nominal Capacity

50Ah

Nominal Energy

2560Wh

Standard Charge Current

0.2C(CC-CV)

Max. Charge Curent

0.5C

Charge Condition

@0℃~45℃

Standard Discharge Current

0.5C

Max. Continuous Discharge Current

1C

Discharge Condition

@-20~60℃

Size

264*180*295mm

Weight

20kg ±2kg

Enclosure

ABS Case, IP67

Terminals/Interfaces

M8 Terminal

Cycle Life

6000 cycles DOD80% 0.2C/0.5C

Cell Configuration

16S1P
