Short Circuit Protection

Over Current Protection

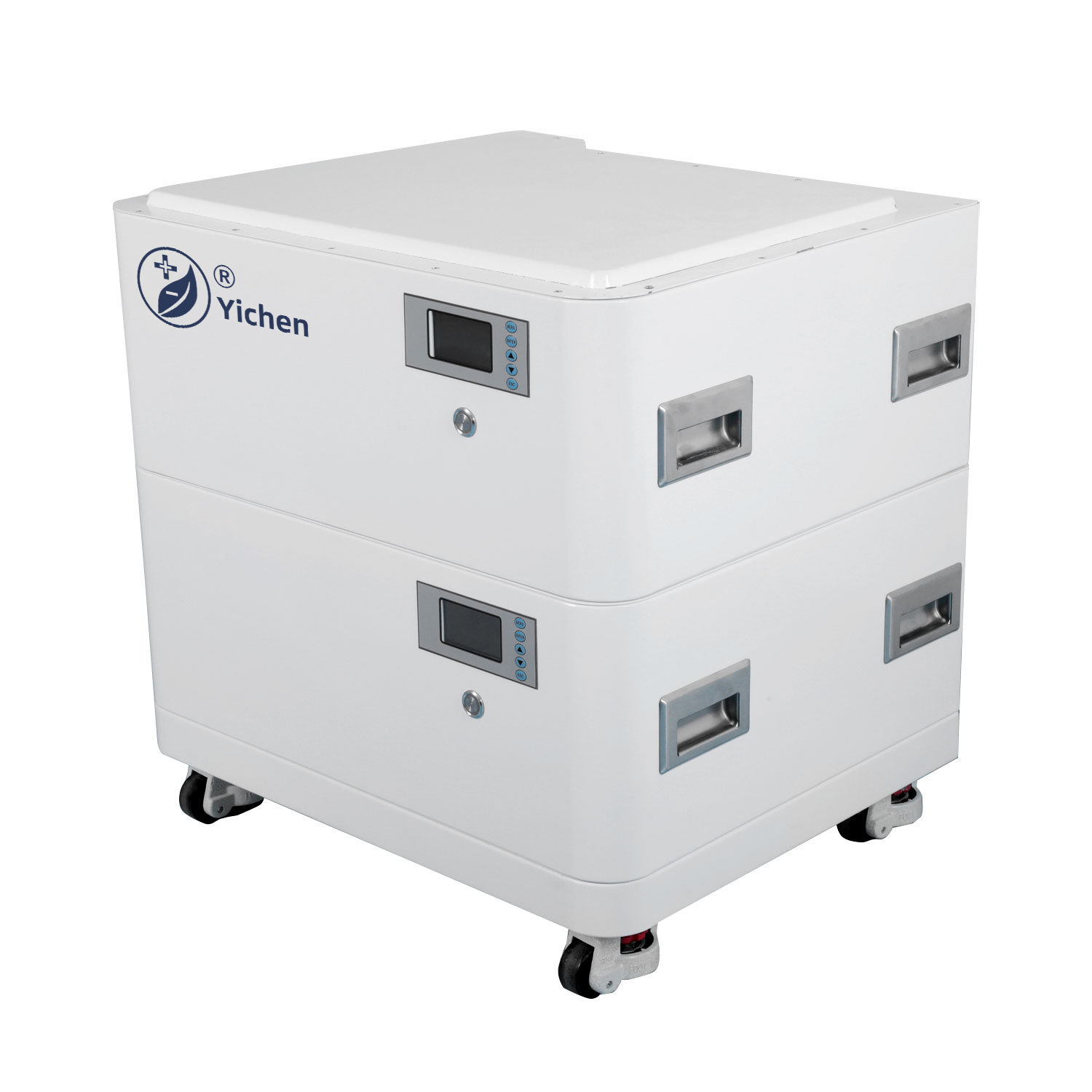

48300-2

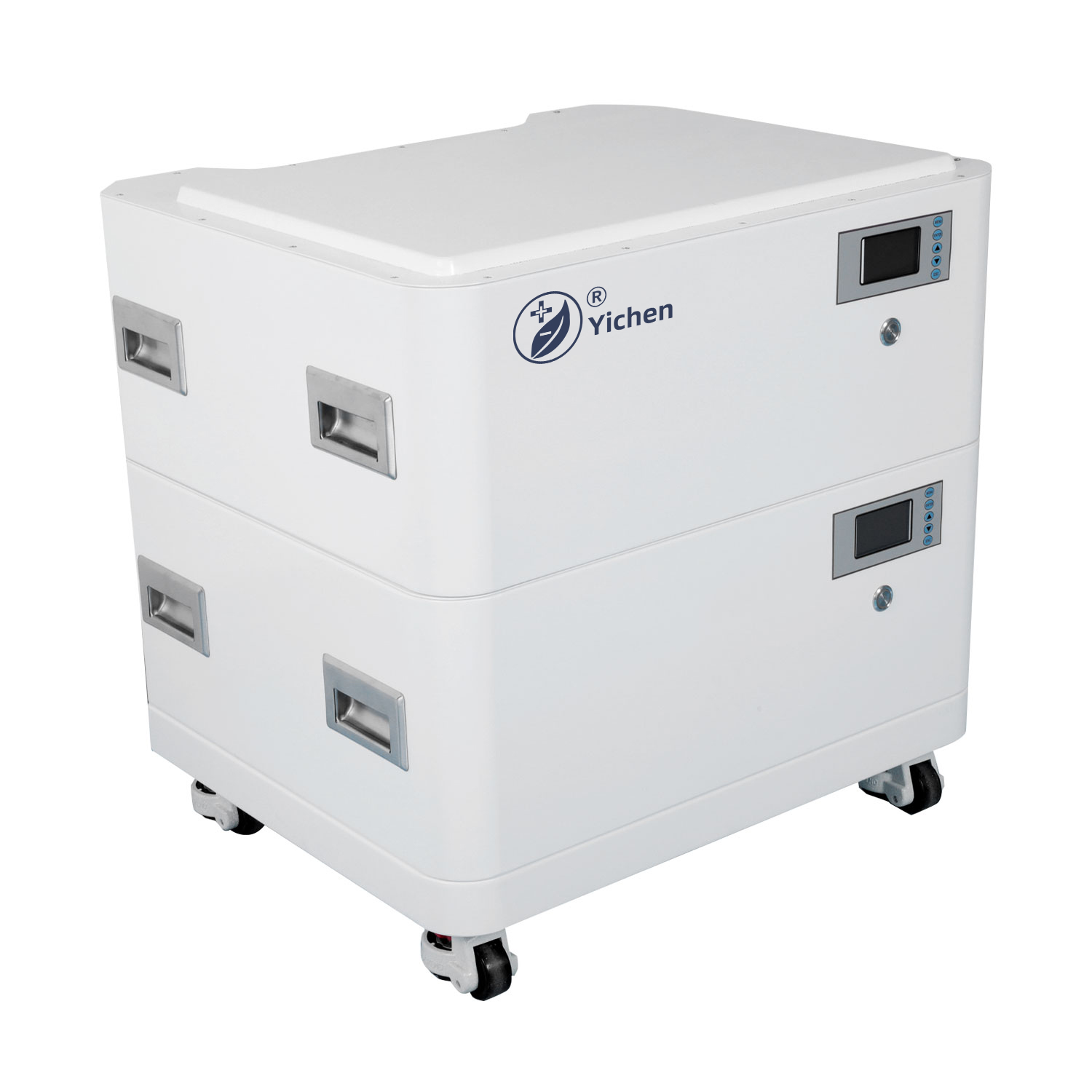

48300-1

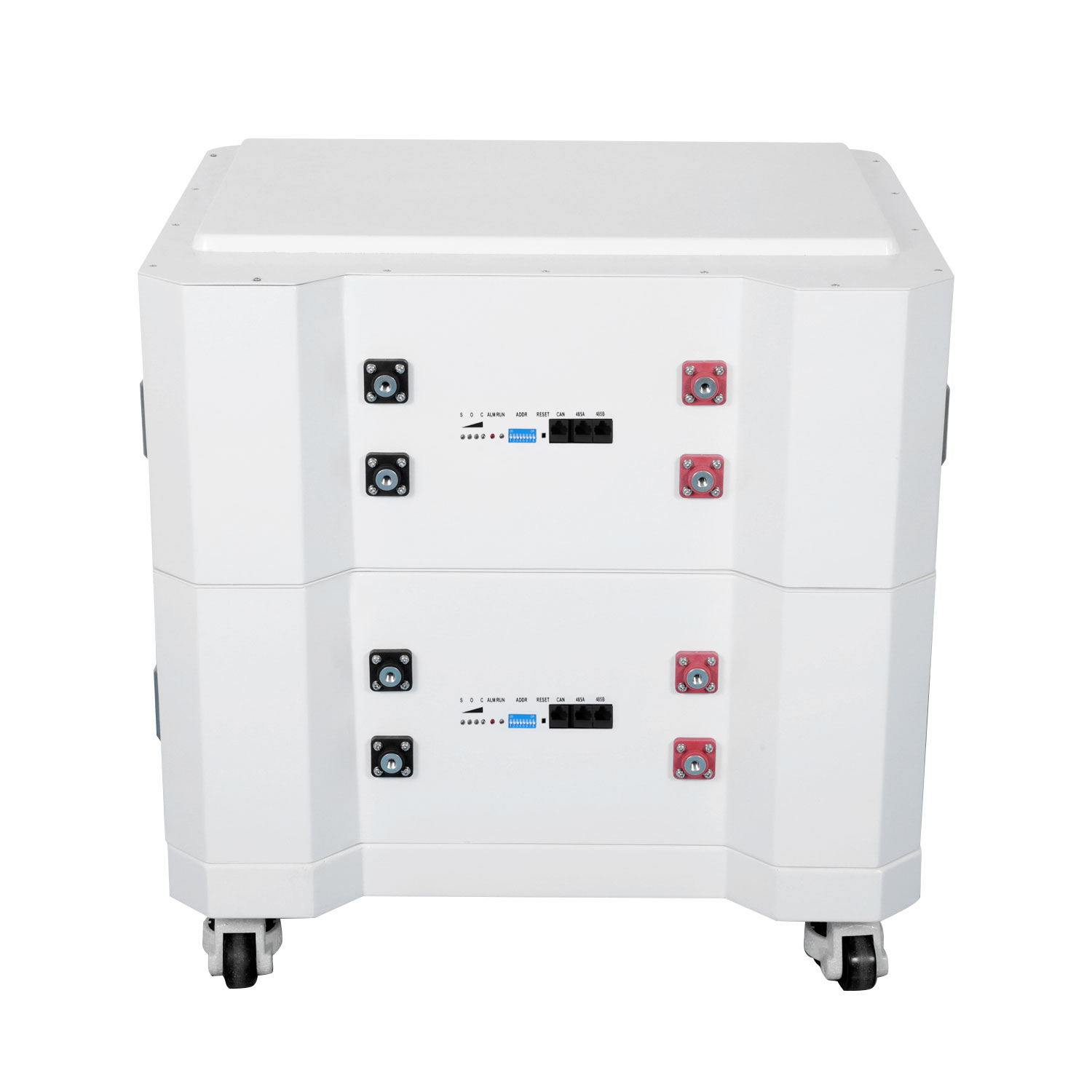

48300-3

Over Charge Protection

Over Discharge Protection

Technical Specifications

Specification

Nominal Voltage

51.2V

Nominal Capacity

300Ah

Nominal Energy

15360Wh

Standard Charge Current

0.2C(CC-CV)

Max. Charge Curent

150A

Charge Condition

@0℃~45℃

Standard Discharge Current

0.5C

Max. Continuous Discharge Current

300A

Discharge Condition

@-20~60℃

Size

640*540*375mm

Weight

120±5kg

Enclosure

Steel Case, IP65

Terminals/Interfaces

M8 Terminal

Cycle Life

6000 cycles DOD80% 0.2C/0.5C

Cell Configuration

16S1P
