Short Circuit Protection

Over Current Protection

24100-2

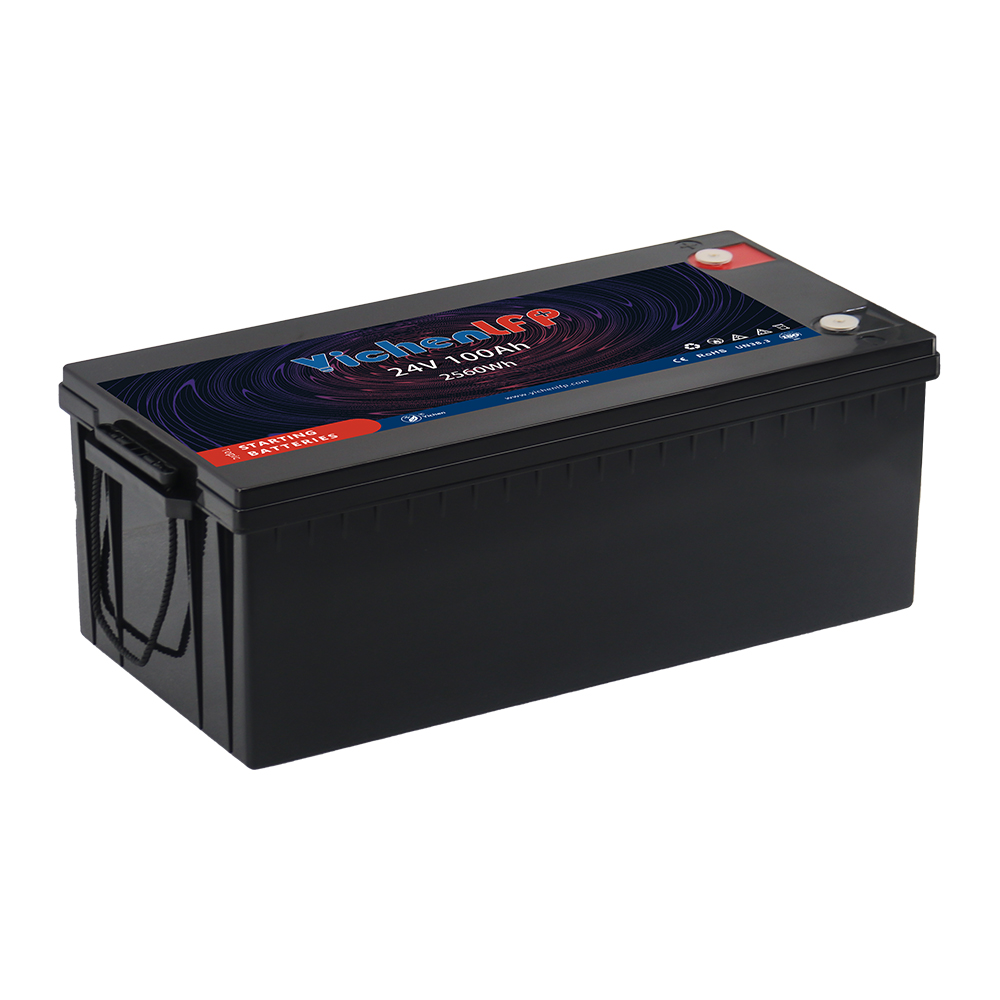

24100-1

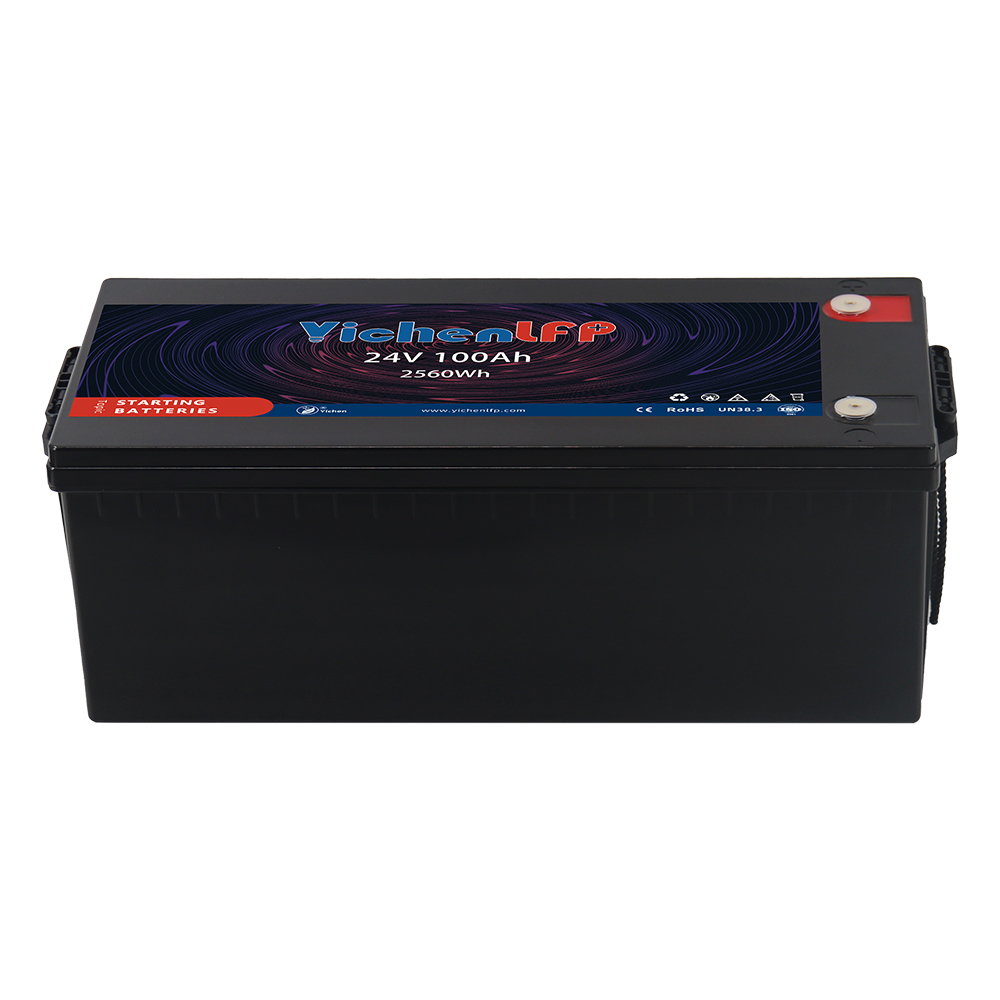

24100-3

Over Charge Protection

Over Discharge Protection

Technical Specifications

Specification

Nominal Voltage

25.6V

Nominal Capacity

100Ah

Nominal Energy

2560Wh

Standard Charge Current

0.2C(CC-CV)

Max. Charge Curent

1C

Charge Condition

0°C~45°C

Standard Discharge Current

0.5C

Max. Continuous Discharge Current

1C

Discharge Condition

-20°C~65°C

Size

532*207*215mm

Weight

21±0.5kg

Enclosure

ABS Case, IP67

Terminals/Interfaces

STD

Cycle Life

6000 cycles DoD80% 0.2C/0.5C

Cell Configuration

8S1P
