Short Circuit Protection

Over Current Protection

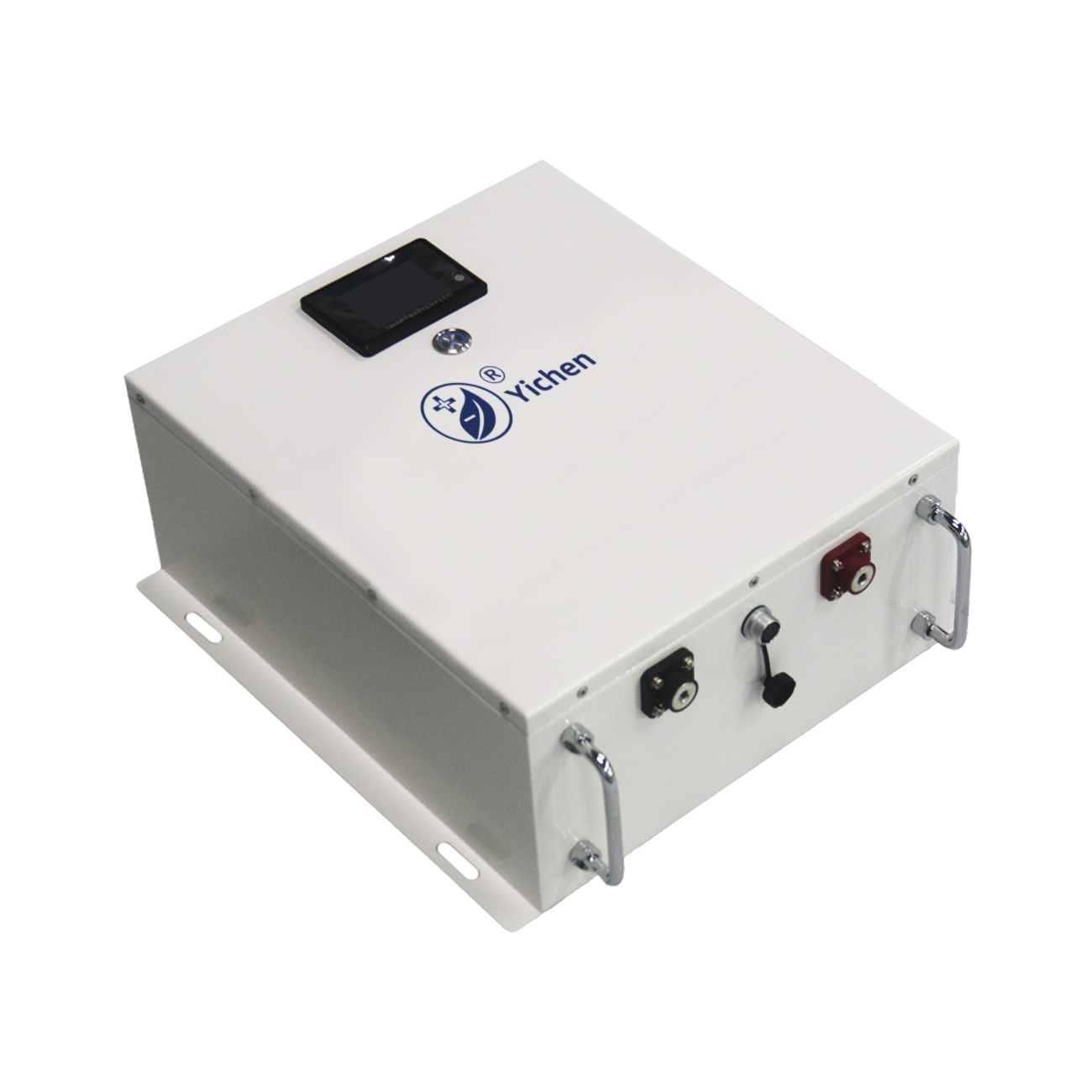

24100-3

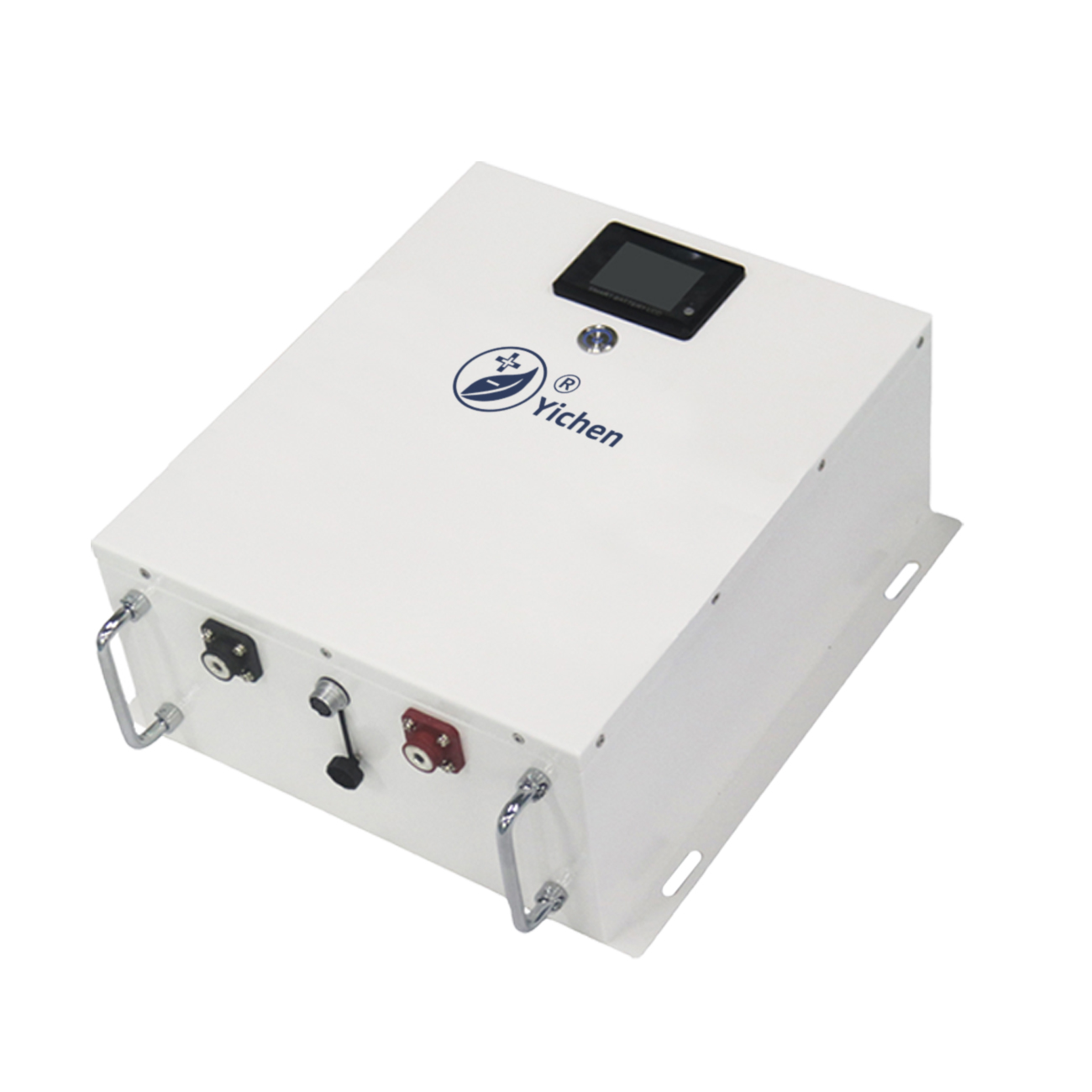

24100-1

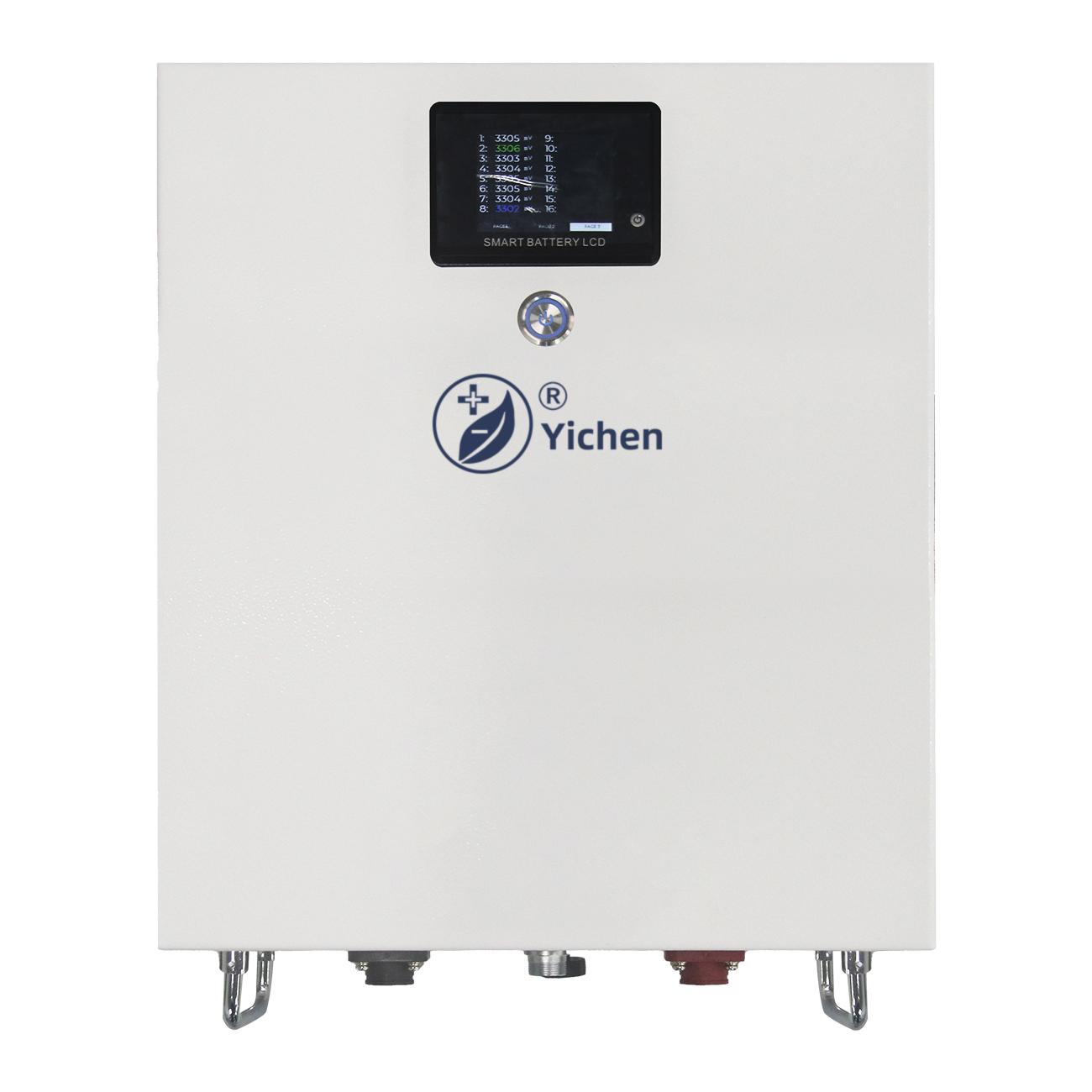

24100-2

Over Charge Protection

Over Discharge Protection

Technical Specifications

Specification

Nominal Voltage

25.6V

Nominal Capacity

100Ah

Nominal Energy

2560Wh

Standard Charge Current

0.2C(CC-CV)

Max. Charge Curent

50A

Charge Condition

@0℃~45℃

Standard Discharge Current

0.5C

Max. Continuous Discharge Current

100A

Discharge Condition

@-20~60℃

Size

370*400*170mm

Weight

24.7kg

Enclosure

Steel Case, IP65

Terminals/Interfaces

M8 Terminal

Cycle Life

6000 cycles DOD80% 0.2C/0.5C

Cell Configuration

8S1P
