Short Circuit Protection

Over Current Protection

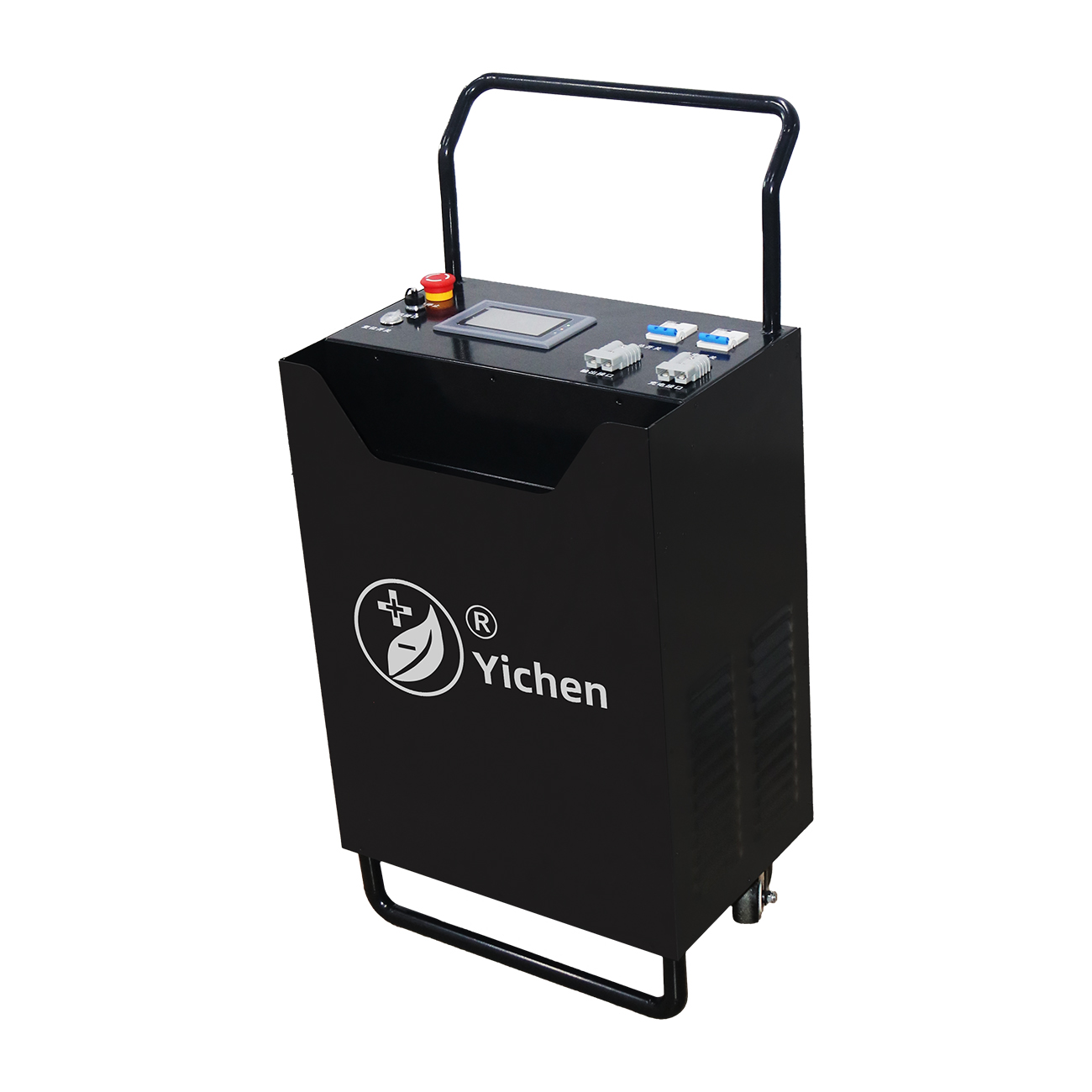

220V 50Ah-2

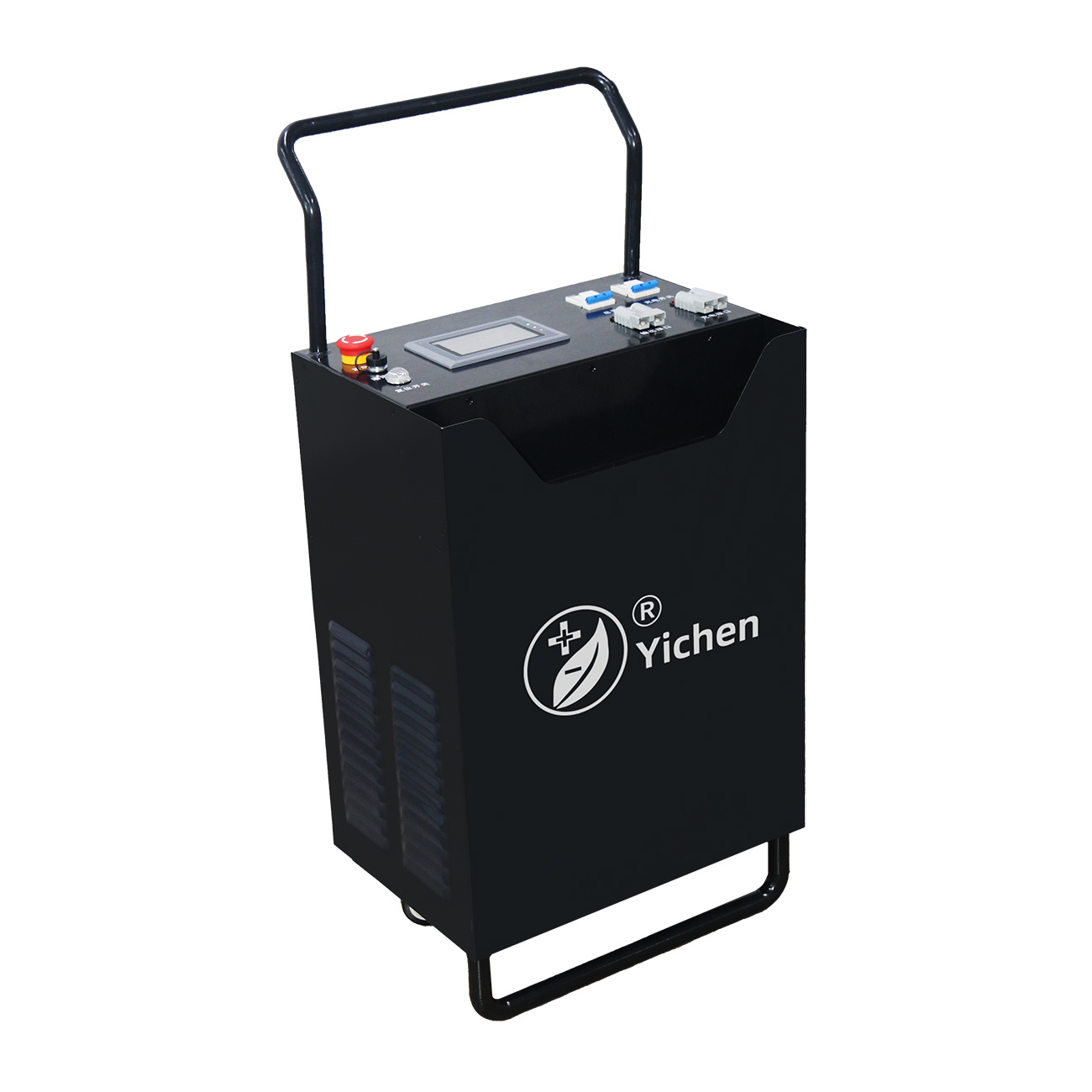

220V 50Ah-1

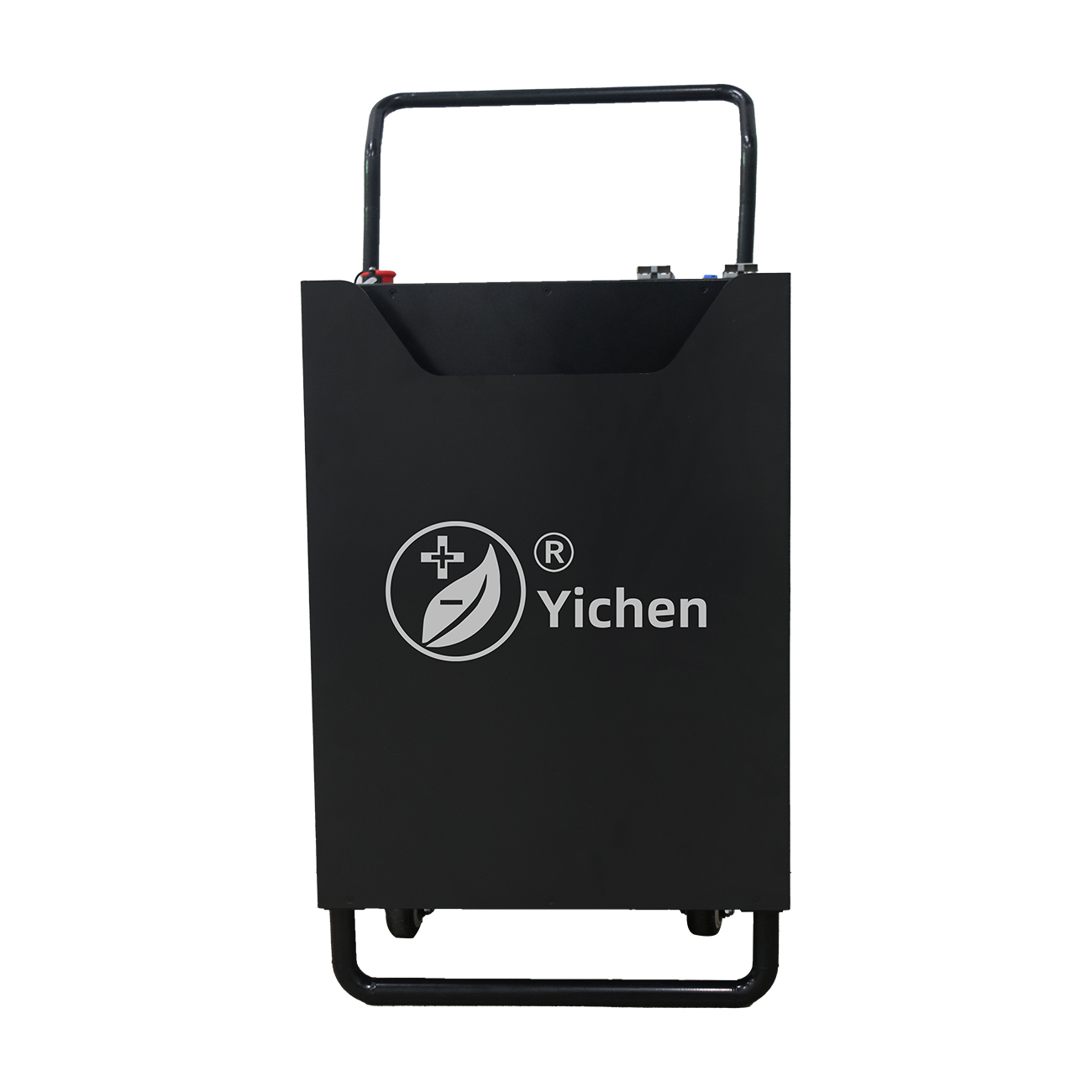

220V 50Ah-3

Over Charge Protection

Over Discharge Protection

Technical Specifications

Specification

Nominal Voltage

217.6V

Nominal Capacity

50Ah

Nominal Energy

10880Wh

Standard Charge Current

0.2C(CC-CV)

Max. Charge Curent

50A

Charge Condition

@0℃~45℃

Standard Discharge Current

0.5C

Max. Continuous Discharge Current

50A

Discharge Condition

@-20~65℃

Size

360*330*720mm

Weight

85±3kg

Enclosure

Metal Case, IP54

Terminals/Interfaces

M8 Terminal

Cycle Life

6000 cycles DOD80% 0.2C/0.5C

Cell Configuration

68S1P

Force-H3
