Short Circuit Protection

Over Current Protection

12200-2

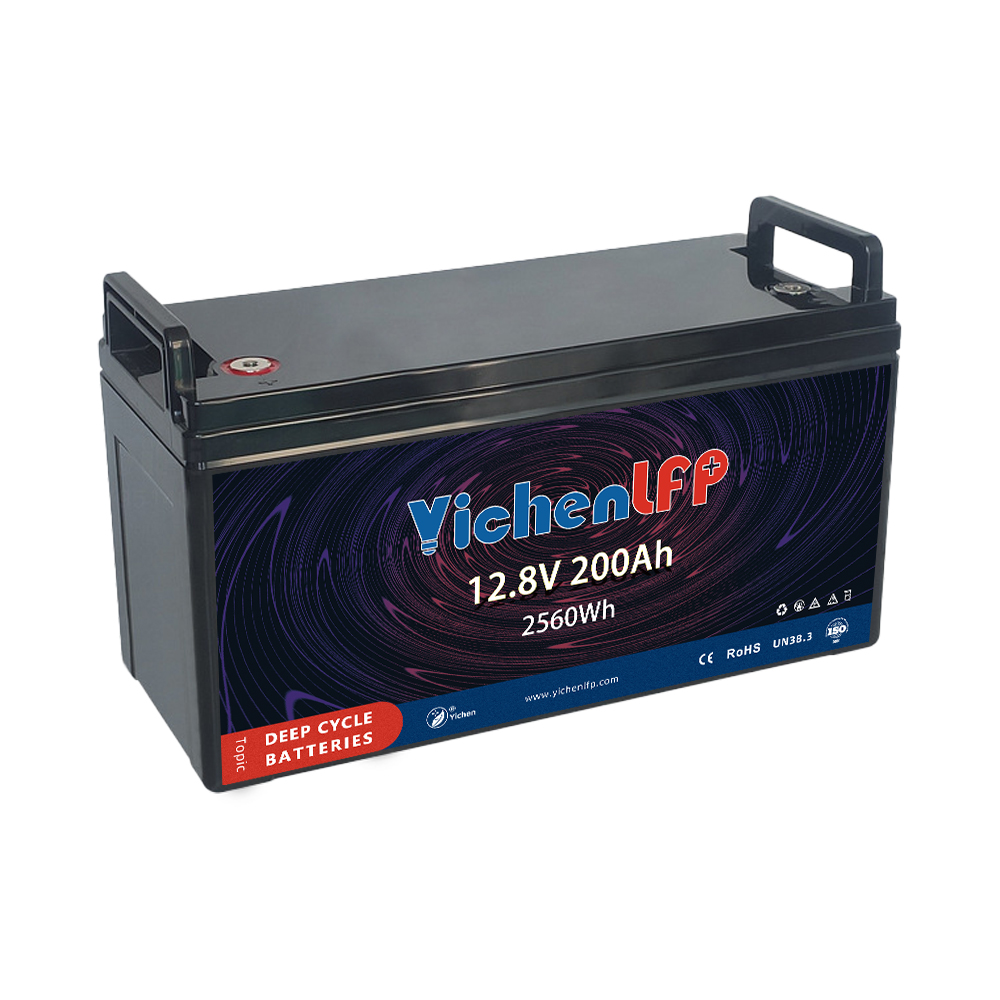

12200-3

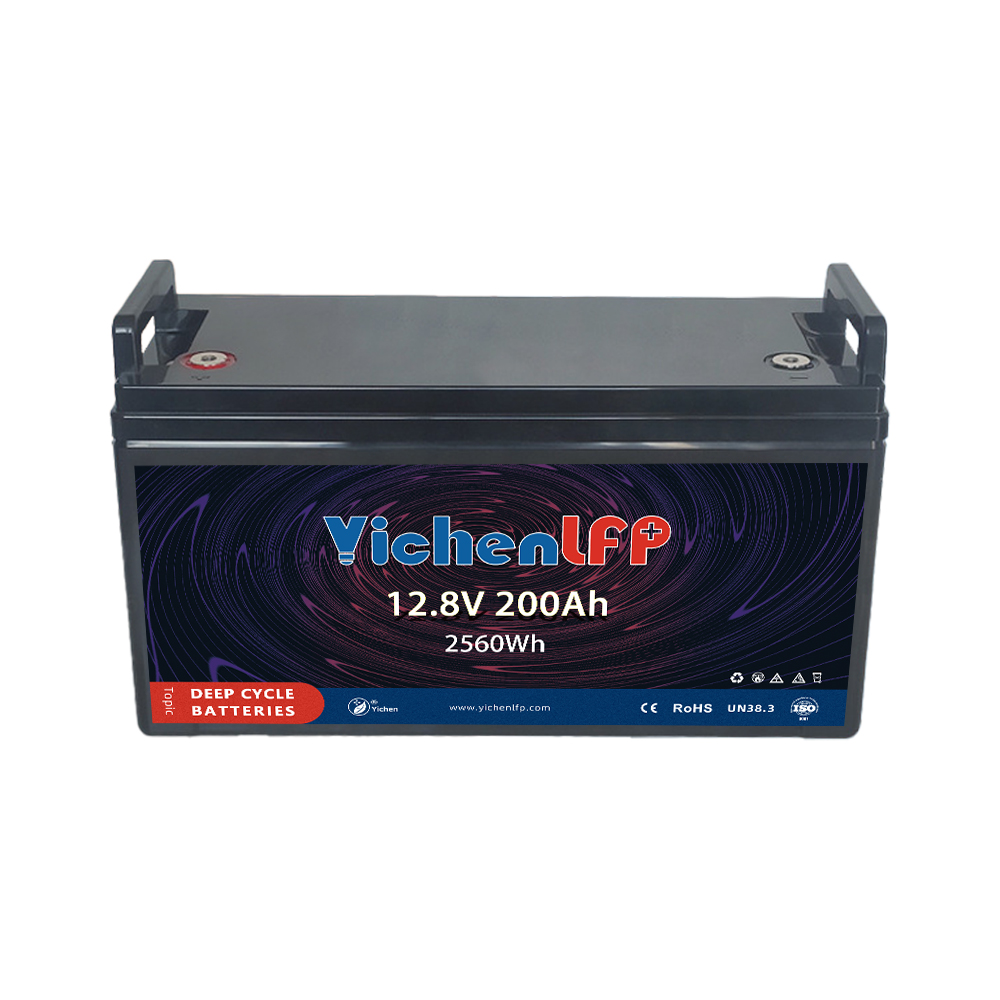

12200-1

Over Charge Protection

Over Discharge Protection

Technical Specifications

Specification

Nominal Voltage

12.8V

Nominal Capacity

200Ah

Nominal Energy

2560Wh

Standard Charge Current

0.2C(CC-CV)

Max. Charge Curent

1C

Charge Condition

0℃~45℃

Standard Discharge Current

0.5C

Max. Continuous Discharge Current

1C

Discharge Condition

-20℃~65℃

Size

406*173*236mm

Weight

21±1kg

Enclosure

ABS Case, IP67

Terminals/Interfaces

M8

Cycle Life

6000 cycles DoD80% 0.2C/0.5C

Cell Configuration

4S1P
