Short Circuit Protection

Over Current Protection

1270-57217 (3)

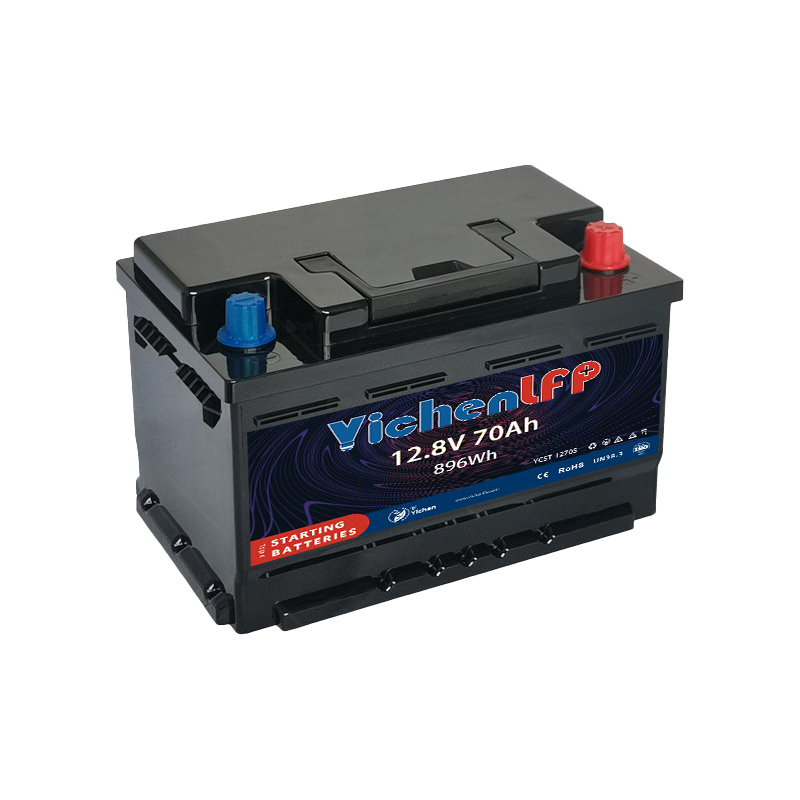

1270-57217 (2)

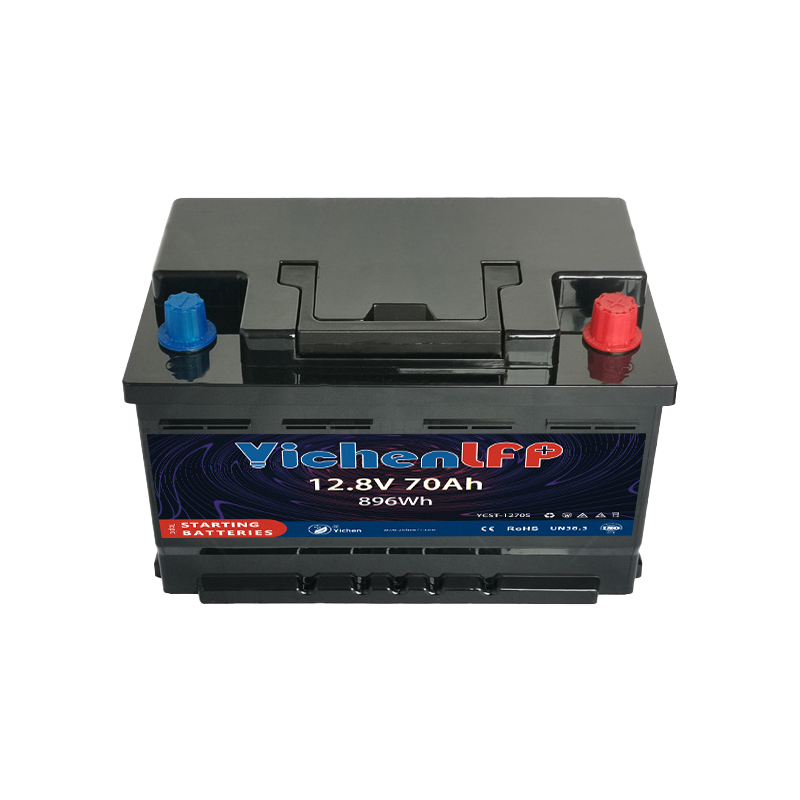

1270-57217 (1)

Over Charge Protection

Over Discharge Protection

Technical Specifications

Specification

Nominal Voltage

12.8V

Nominal Capacity

70Ah

Nominal Energy

896Wh

Standard Charge Current

0.2C(CC-CV)

Max. Charge Curent

1C

Charge Condition

0°C~45°C

Standard Discharge Current

0.5C

Max. Continuous Discharge Current

1C

Discharge Condition

-20°C~65°C

Size

279*175*189mm

Weight

8±0.3kg

Enclosure

ABS Case, IP67

Terminals/Interfaces

STD

Cycle Life

6000 cycles DoD80% 0.2C/0.5C

Cell Configuration

4S1P

Force-H3
