Short Circuit Protection

Over Current Protection

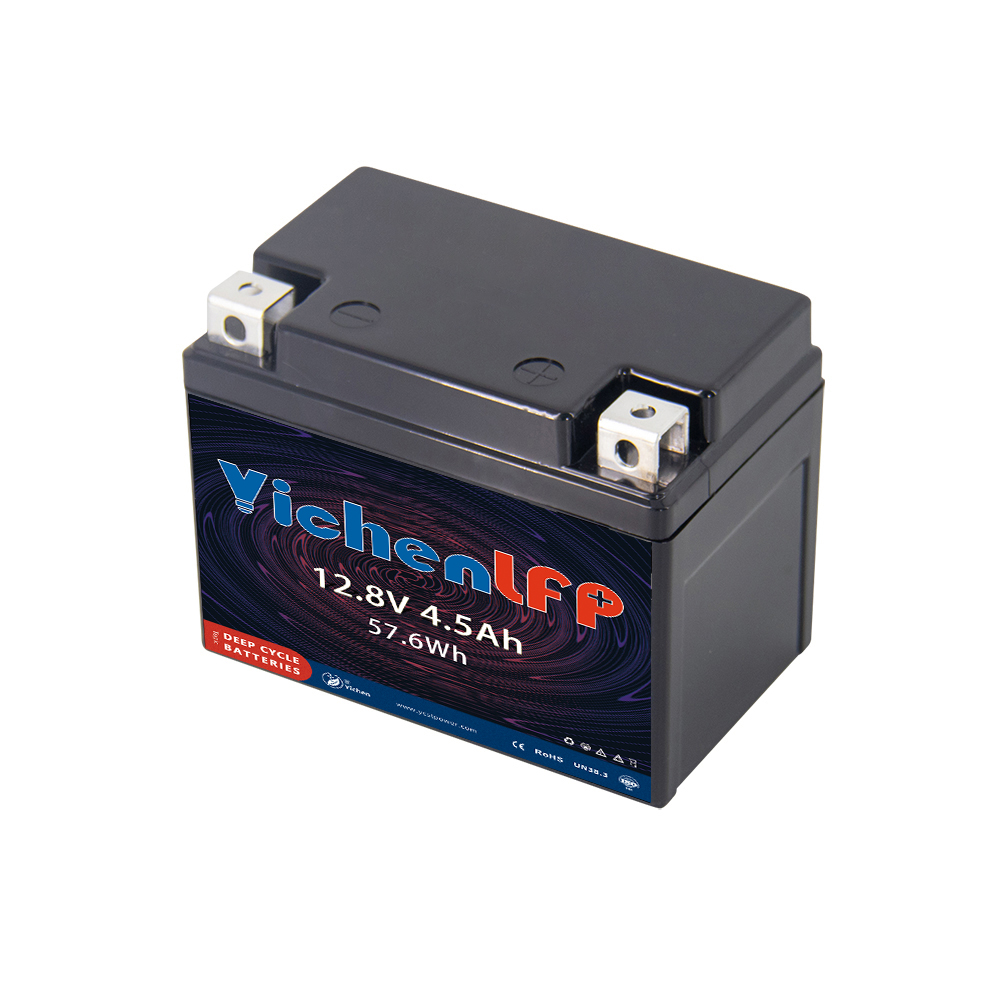

12V4.5Ah(YT4)-2

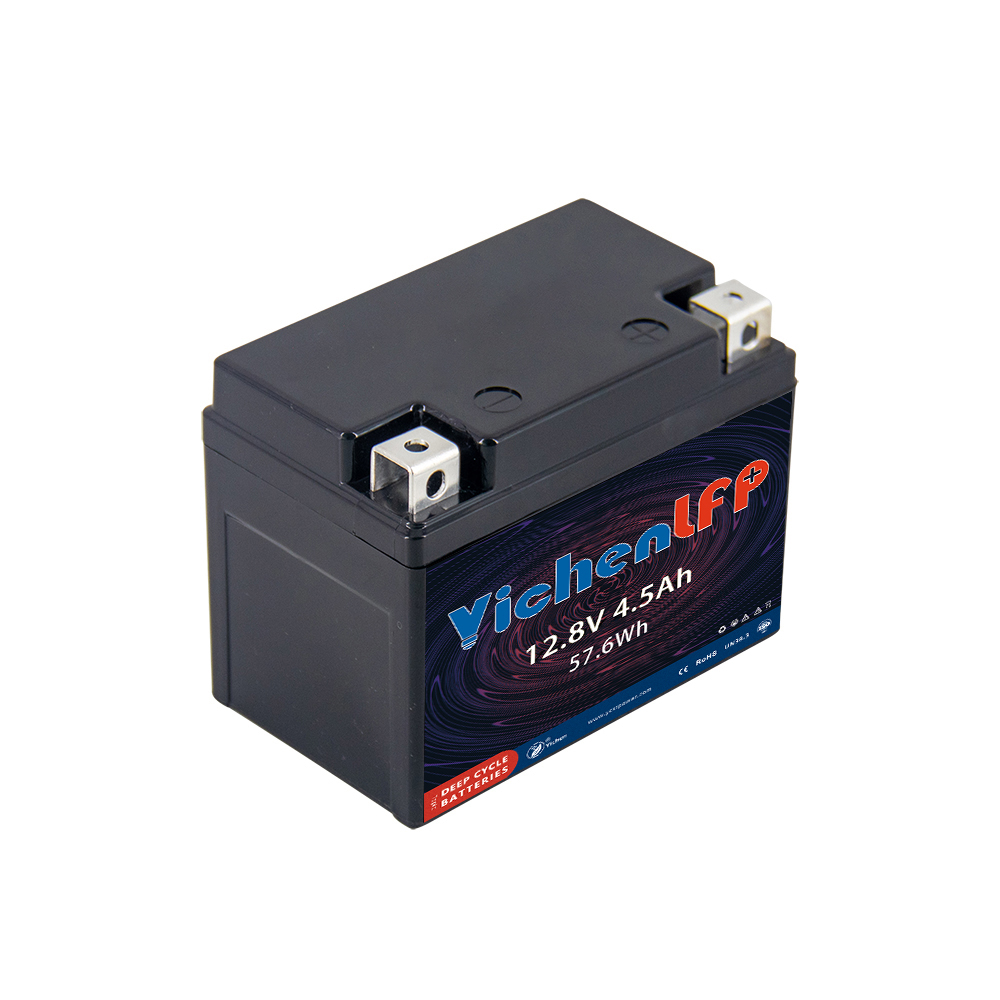

12V4.5Ah(YT4)-1

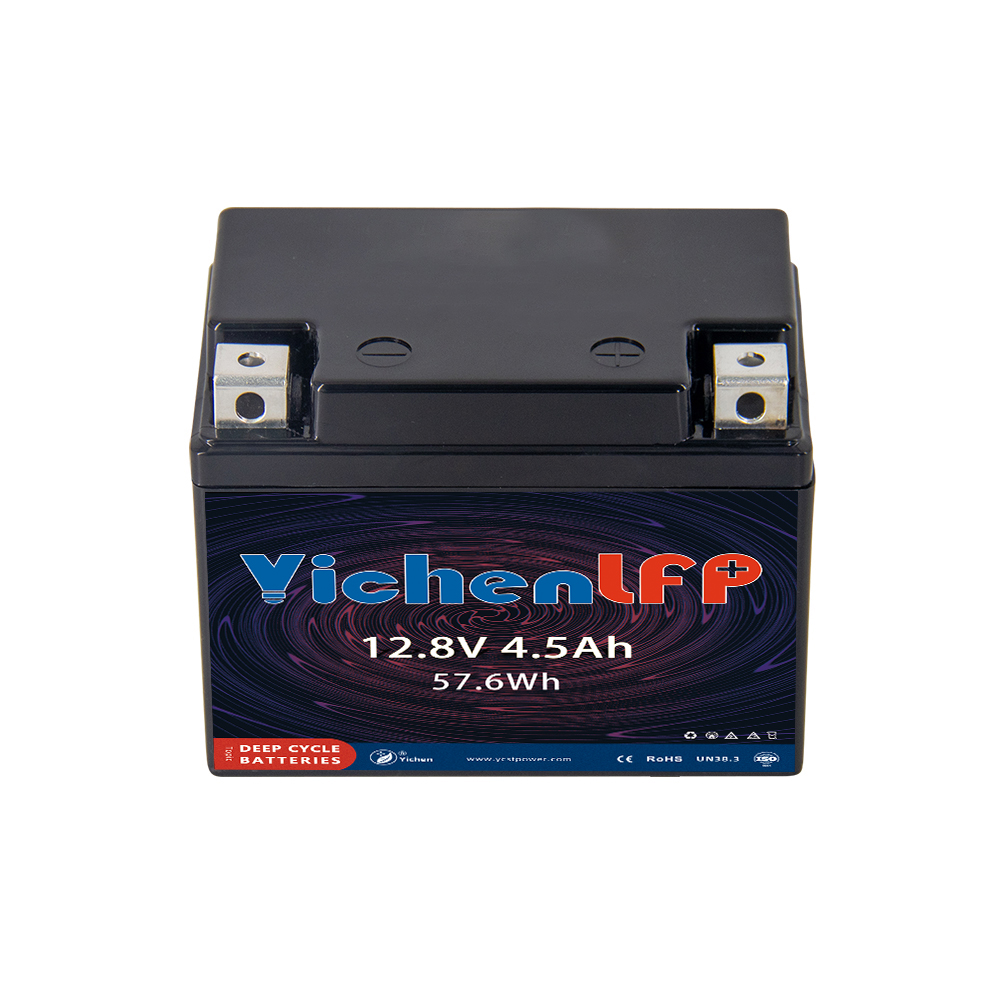

12V4.5Ah(YT4)-3

Over Charge Protection

Over Discharge Protection

Technical Specifications

Specification

Nominal Voltage

12.8V

Nominal Capacity

4.5Ah

Nominal Energy

57.6Wh

Standard Charge Current

0.2C(CC-CV)

Max. Charge Curent

1C

Charge Condition

0°C~45°C

Standard Discharge Current

0.5C

Max. Continuous Discharge Current

1C

Discharge Condition

-20°C~65°C

Size

113*69*86mm

Weight

0.58±0.3kg

Enclosure

ABS Case, IP67

Terminals/Interfaces

M5

Cycle Life

3000 cycles DoD80% 0.2C/0.5C

Cell Configuration

4S1P
