Short Circuit Protection

Over Current Protection

ES12100/12100-1

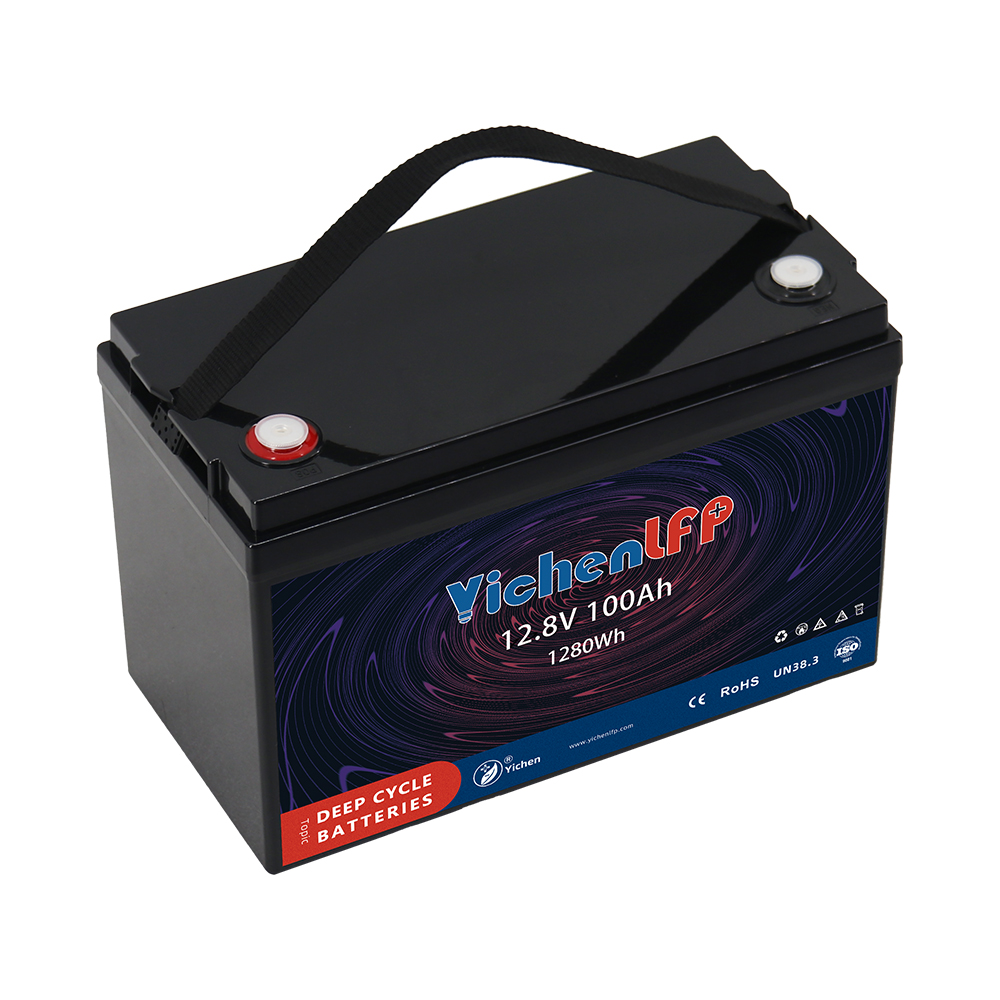

12100-3

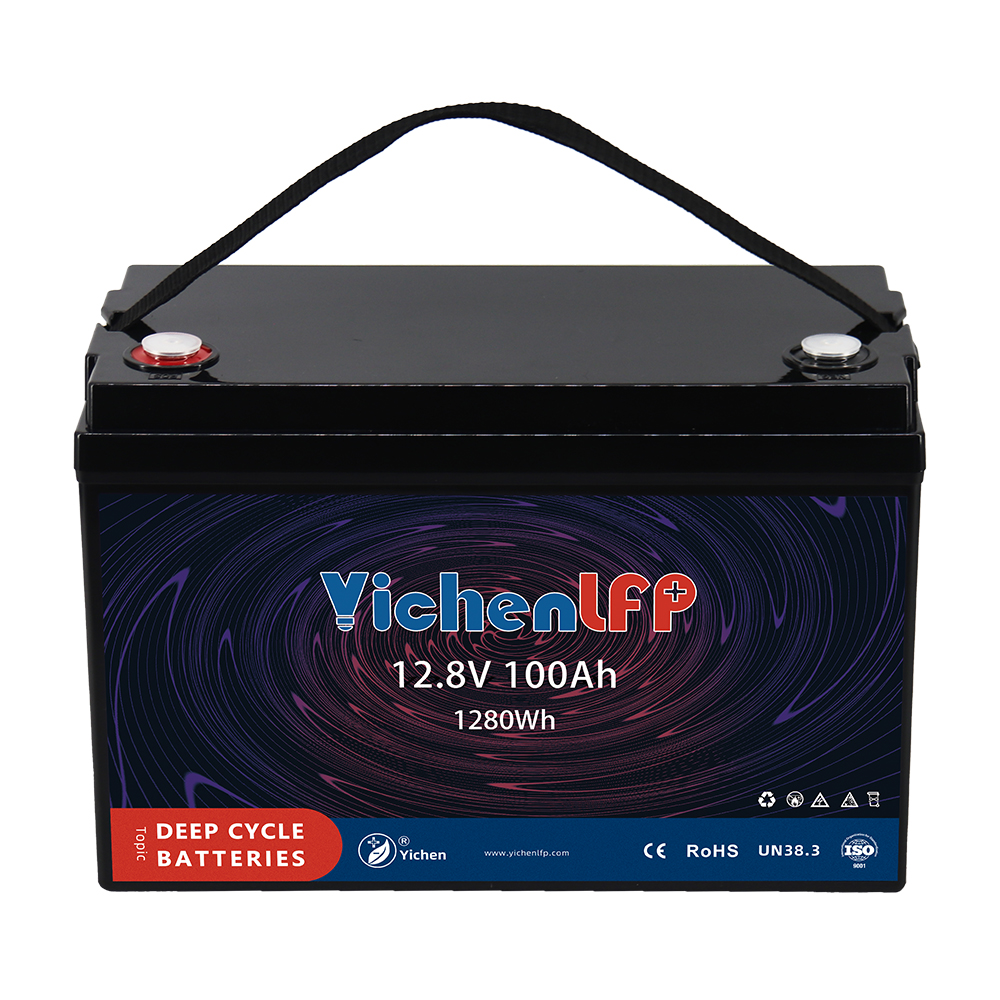

12100-2

Over Charge Protection

Over Discharge Protection

Technical Specifications

Specification

Nominal Voltage

12.8

Nominal Capacity

100Ah

Nominal Energy

1280Wh

Standard Charge Current

0.2C(CC-CV)

Max. Charge Curent

1C

Charge Condition

0°C~45°C

Standard Discharge Current

0.5C

Max. Continuous Discharge Current

1C

Discharge Condition

-20°C~65°C

Size

330*172*215mm

Weight

10.5±0.3kg

Enclosure

ABS Case, IP67

Terminals/Interfaces

M8

Cycle Life

6000cycles 80%DoD,
25℃/ 0.2C

Cell Configuration

4S1P
