Short Circuit Protection

Over Current Protection

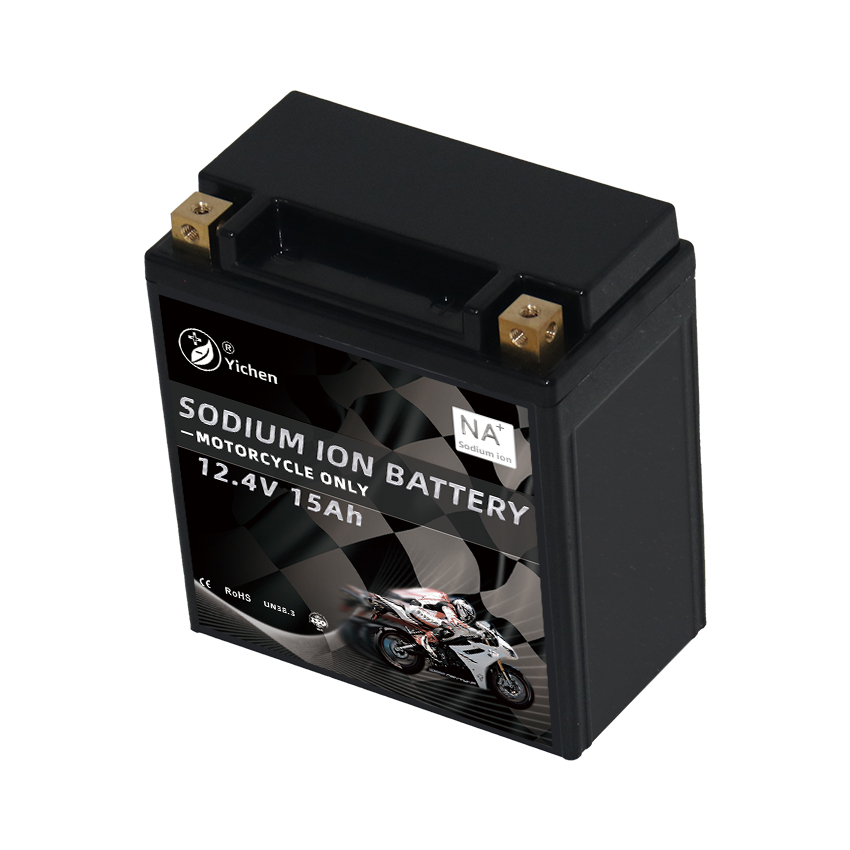

YT16 (2)

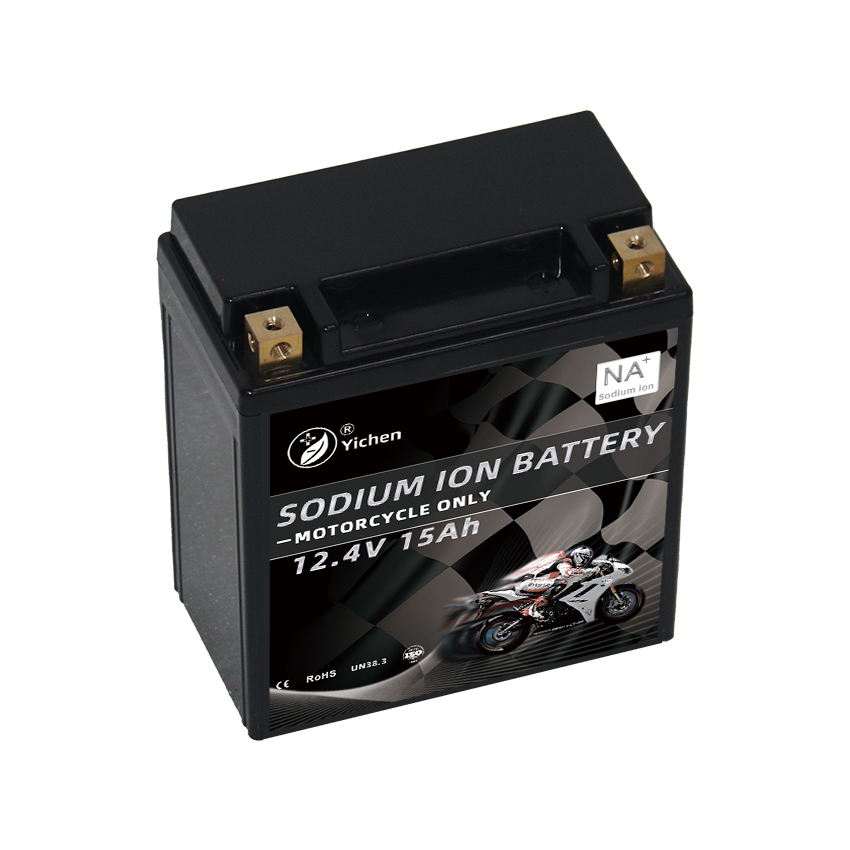

YT16 (1)
YT16 (3)

Over Charge Protection

Over Discharge Protection

Technical Specifications

Specification

Nominal Voltage

12.4V

Nominal Capacity

15Ah

Nominal Energy

186Wh

Standard Charge Current

0.2C(CC-CV)

Max. Charge Curent

1C

Charge Condition

-20°C~70°C

Standard Discharge Current

0.5C

Max. Continuous Discharge Current

2C

Discharge Condition

-40°C~70°C

Size

150*86*166mm

Weight

2.35±0.1kg

Enclosure

ABS Case, IP67

Terminals/Interfaces

M6

Cycle Life

3000cycles 80%DoD,
25℃/ 0.2C

Cell Configuration

4S1P
