Short Circuit Protection

Over Current Protection

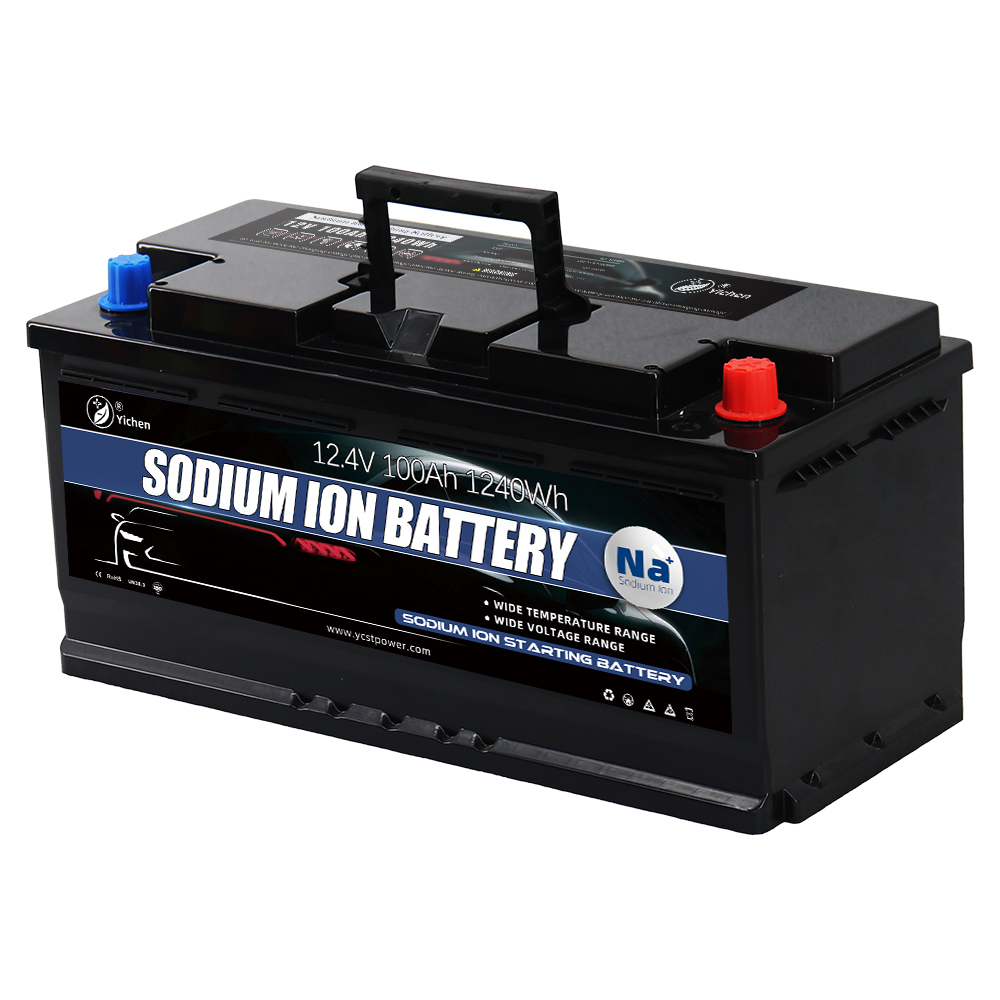

12100-2

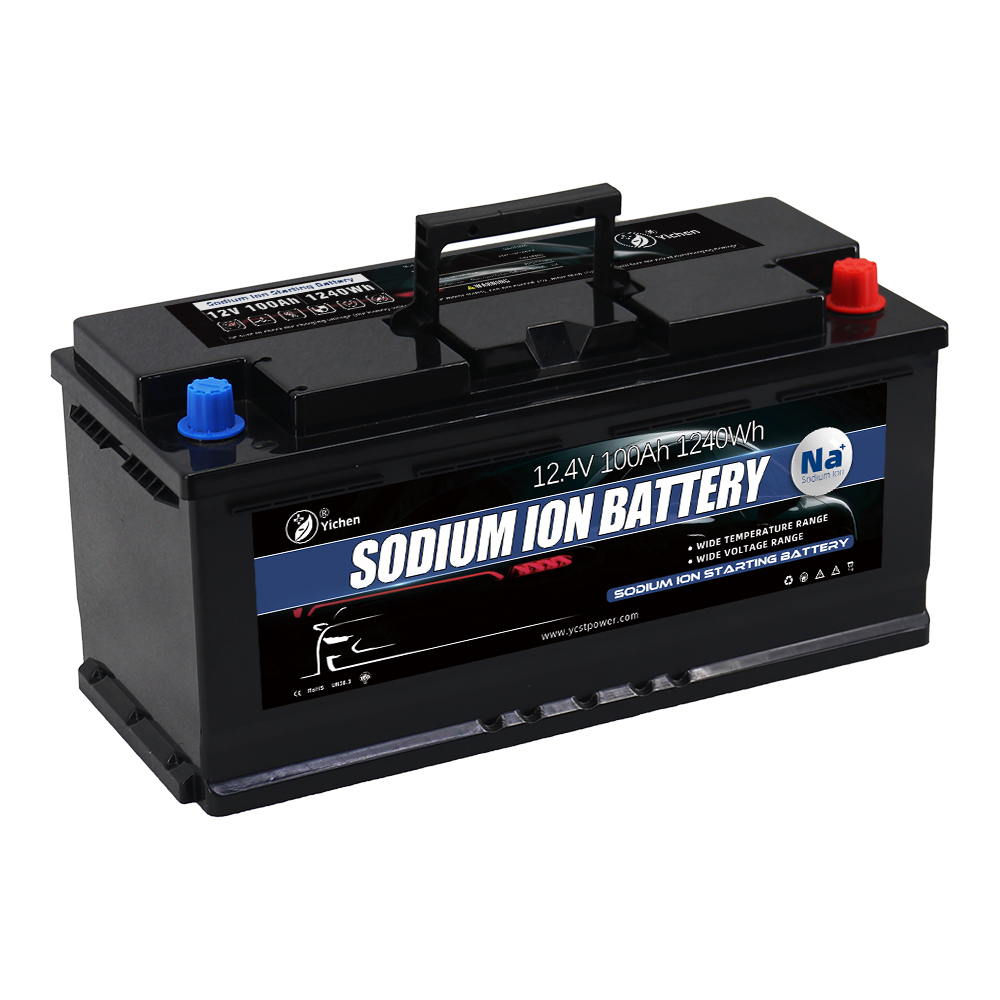

12100-1

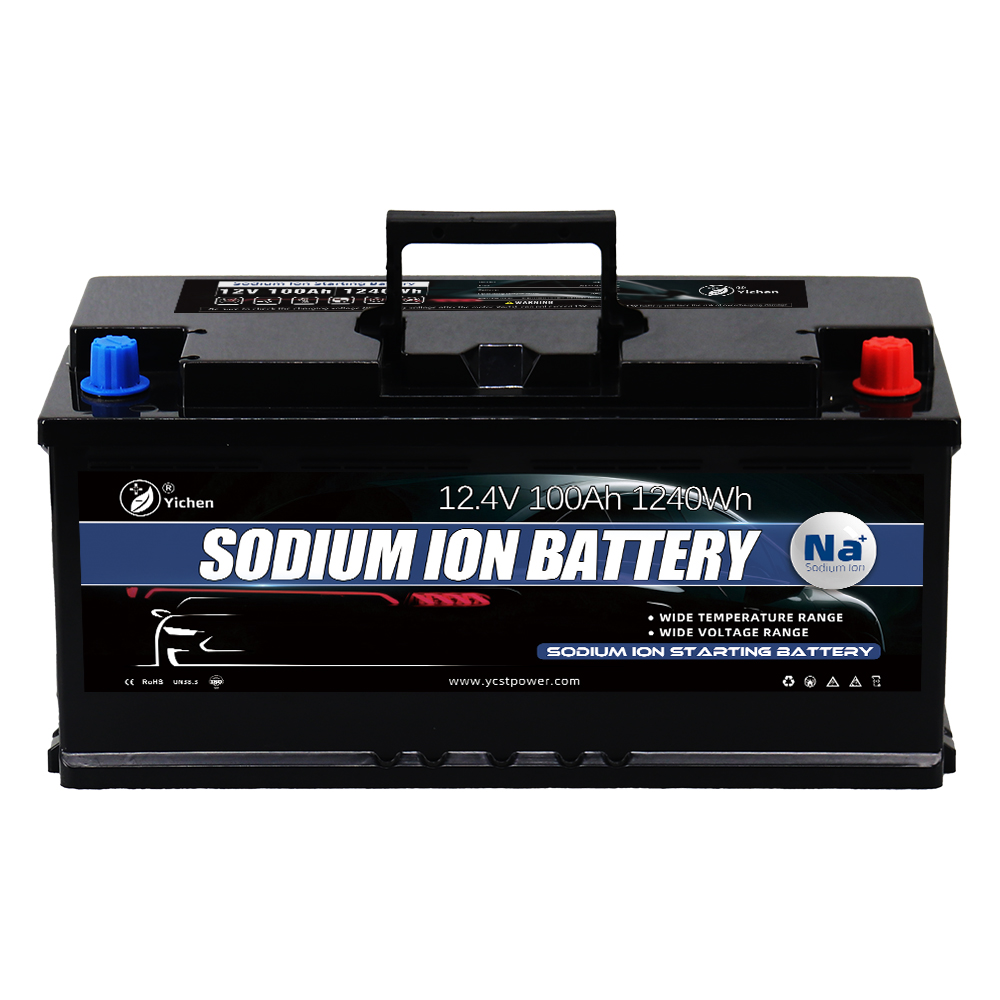

12100-3

Over Charge Protection

Over Discharge Protection

Technical Specifications

Specification

Nominal Voltage

12.4V

Nominal Capacity

100Ah

Nominal Energy

1240Wh

Standard Charge Current

0.2C(CC-CV)

Max. Charge Curent

1C

Charge Condition

-20°C~70°C

Standard Discharge Current

0.5C

Max. Continuous Discharge Current

2C

Discharge Condition

-40°C~70°C

Size

355*175*188mm

Weight

12.35±0.3kg

Enclosure

ABS Case, IP67

Terminals/Interfaces

STD

Cycle Life

3000cycles 80%DoD,
25℃/ 0.2C

Cell Configuration

4S10P
